F-SERIES

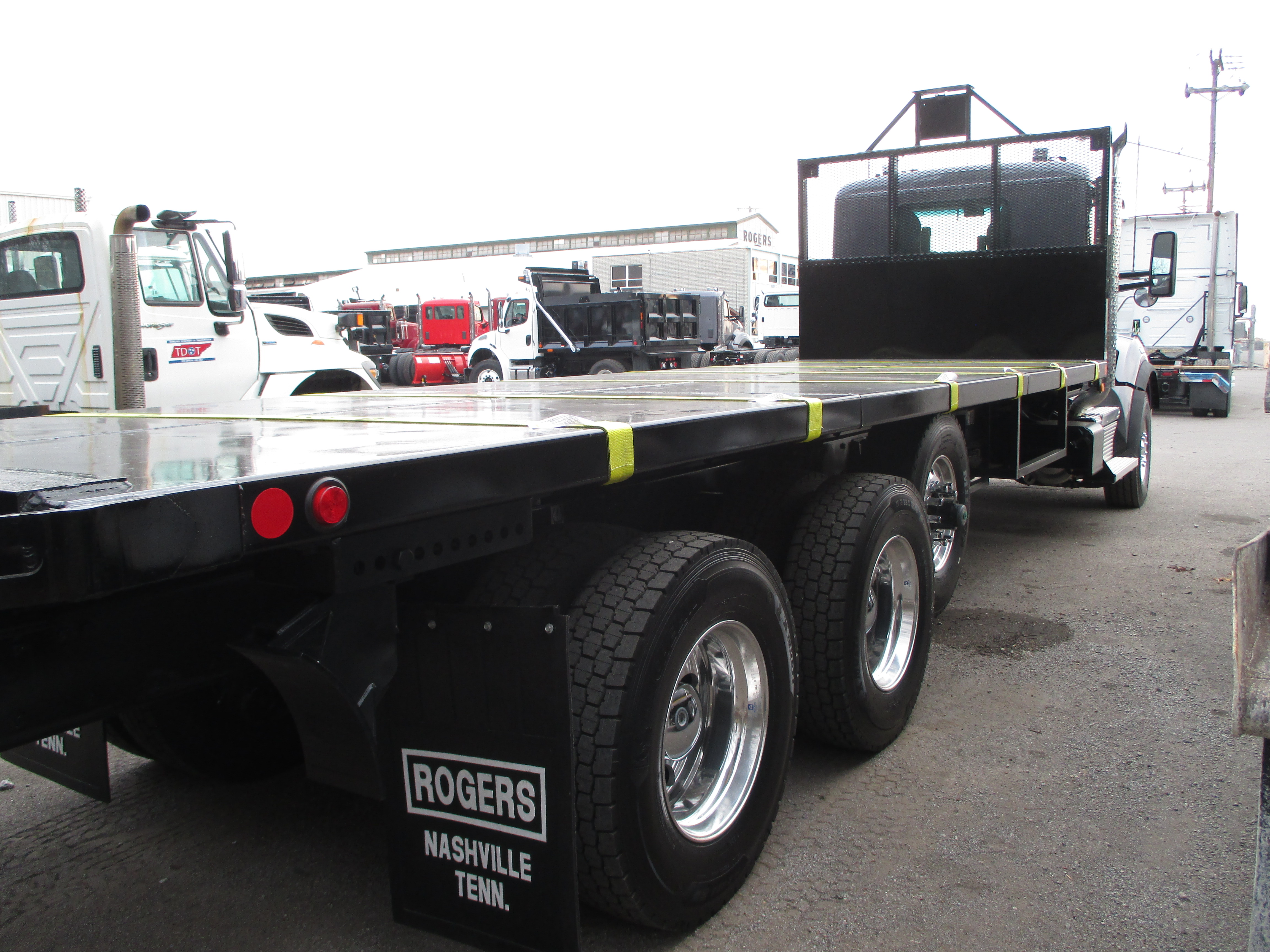

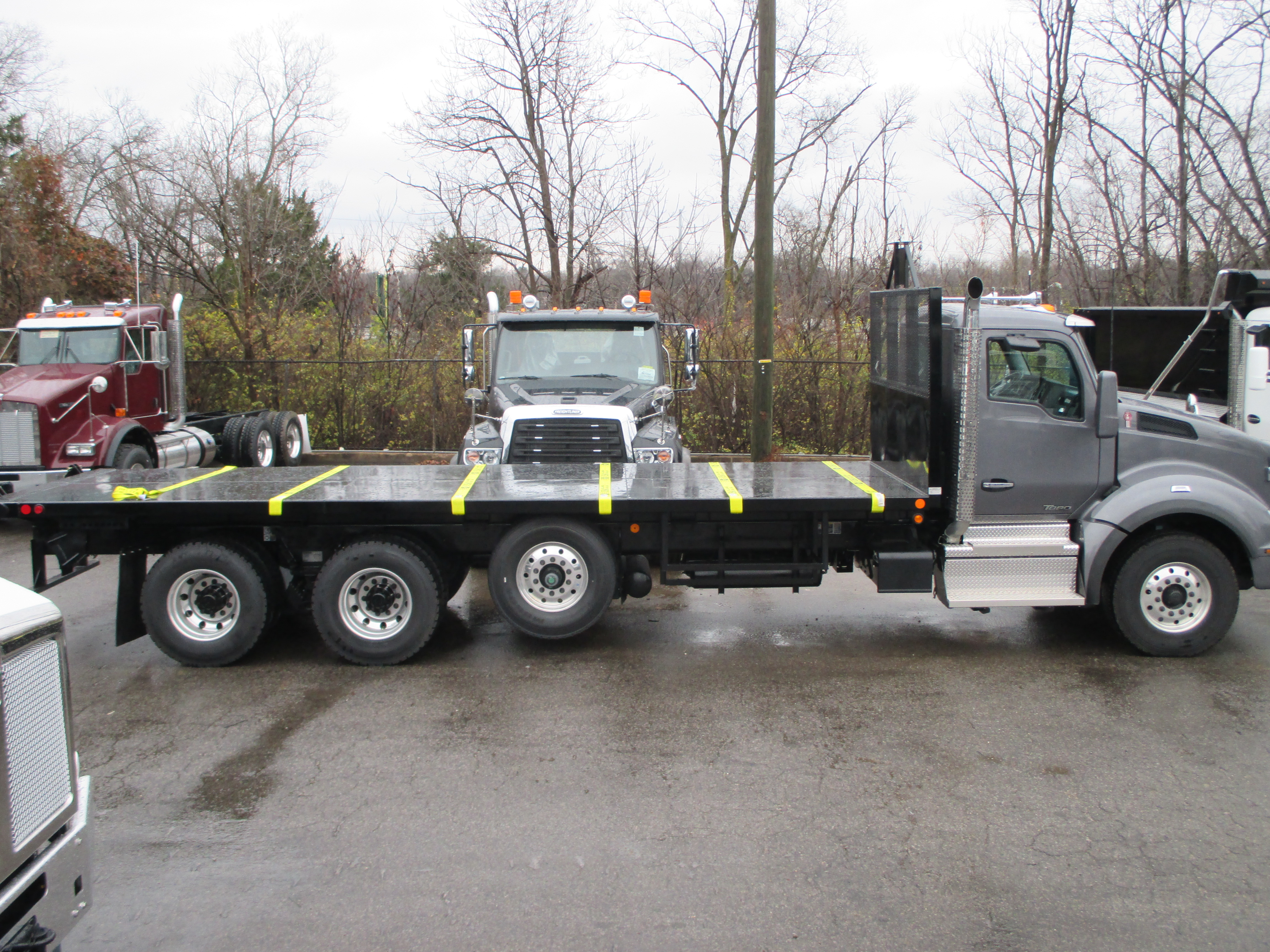

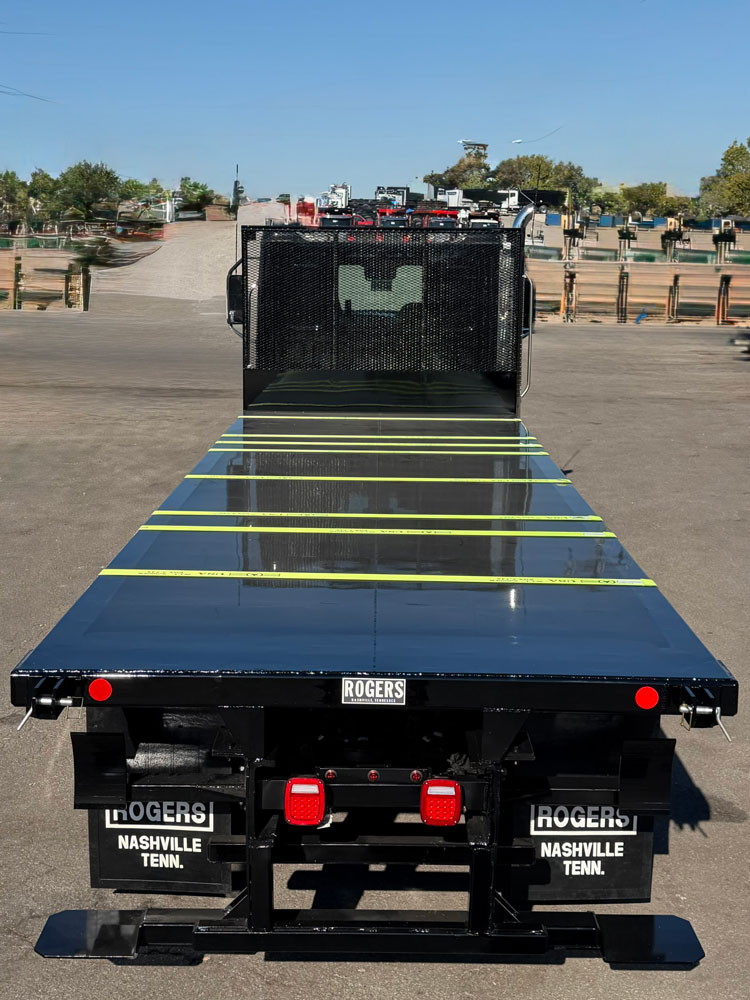

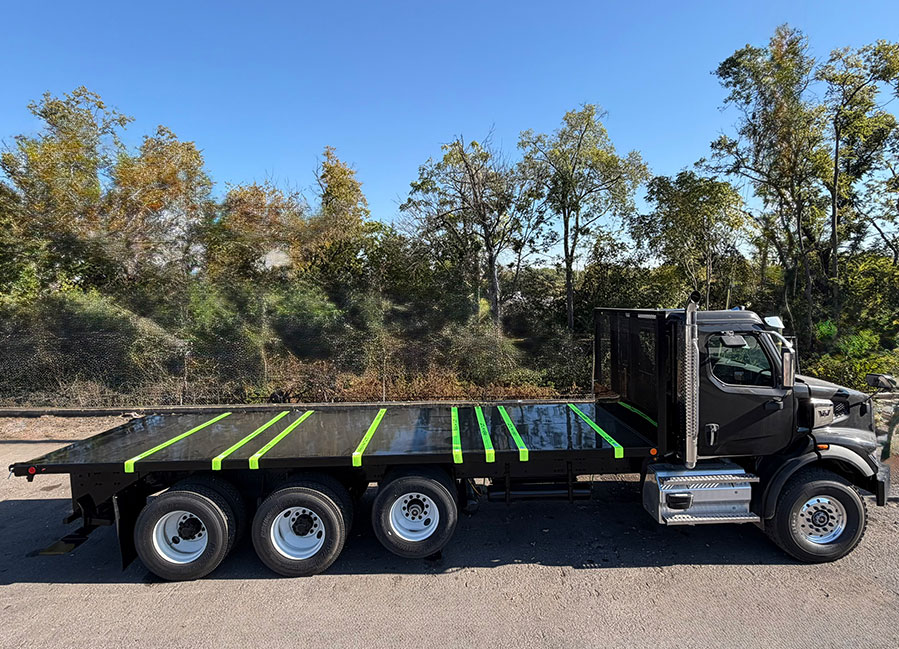

ROGERS Manufacturing flatbed delivers strength and durability to meet the needs of all flatbed applications. The floor is constructed with 7 gauge high tensile steel on top of 8” structural steel longitudinals. The cross members are 4” structural steel, extending the full width of the floor. Stake pockets come on sides, front and rear; ICC lights and reflectors with rear corners lights recessed. For finishing touches, the bed is painted in traditional ROGERS black and includes rear rubber mud flaps. This body is ideally suited to haul light materials, tools & supplies for builders, contractors, brick, and block companies.

Popular options for the flat include a 10 gauge steel front, providing maximum cab and rear window protection without limiting visibility. This feature is constructed with side braces, front posts, and an expanded metal window. Additionally, we can install a material-handler mounting stations to the rear of your flatbed. Click here to learn more (see Material Handler Mounting)

“ROGERS – Another Word for Quality” has been our slogan as a trusted dump body manufacturer since 1946. Coast to coast, each ROGERS’s body is custom designed to match our customer’s specific use. Collaborate with our sales team to design and build the exact body that best suits your truck’s needs.

See F-Series Brochure

See Features

Length (ft.) 10 12 14 16 18 20 22 24 26 28
Model Number 100F 120F 140F 160F 180F 200F 220F 240F 260F 280F
Truck CA/CT* (in.) 72 84 102 102/120 132-150 150-170 170-190 190-216 200+ 200+
Approximate Weight (lbs) 1160 1400 1640 1930 2250 2570 2890 3210 3530 3850

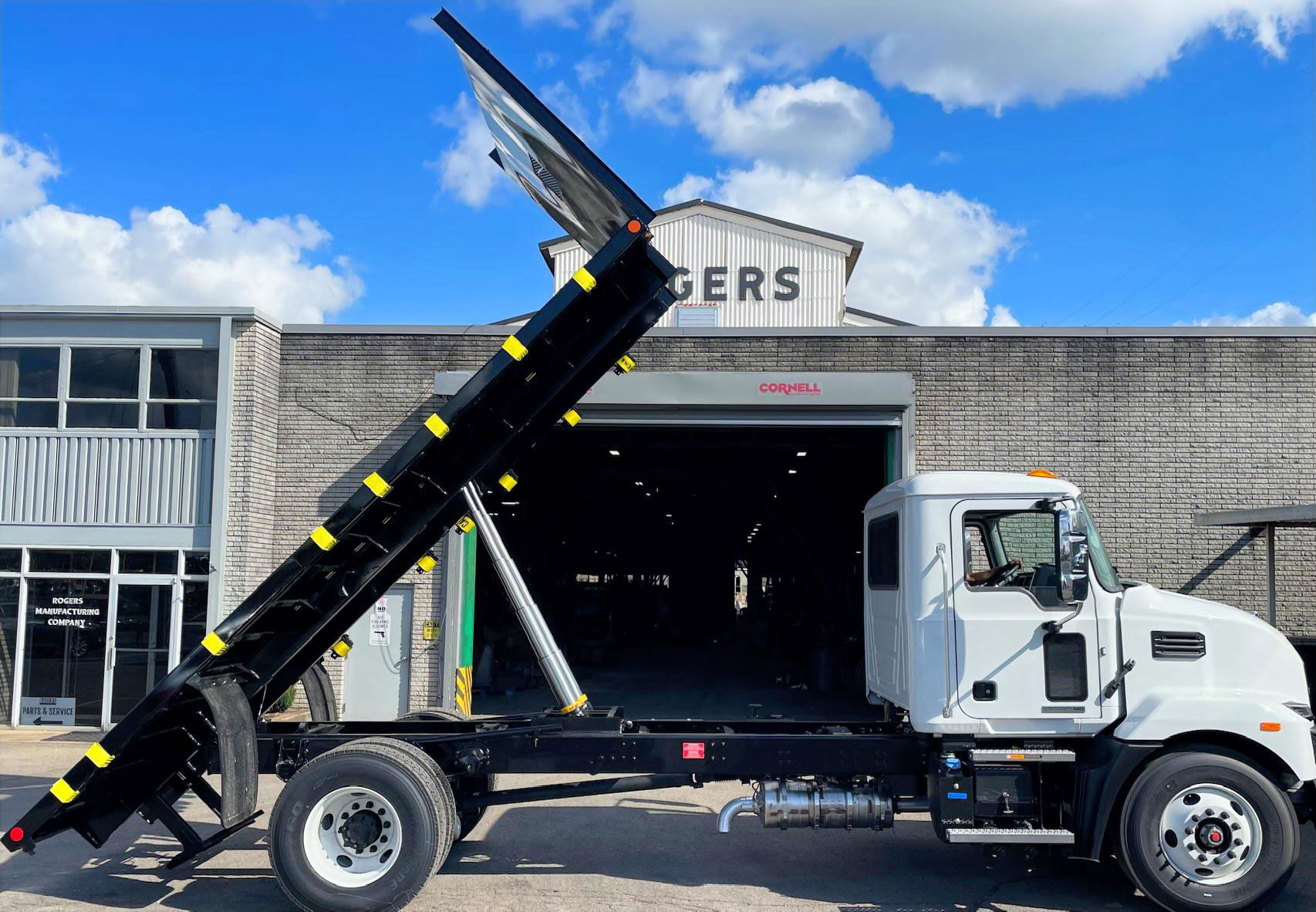

  • CYLINDER: Either twin underbody or front-mount telescopic hoists
  • FLOOR FRAME: 7” structural steel longitudinals with 4” structural steel cross members
  • FLOOR MATERIAL: 10 gauge high tensile steel
  • STAKE POCKETS: 1-5/8” x 3” opening on all sides 3 ½” x 3 ½”
  • CAB CONTROLS: Option of air operated or heavy duty cables
  • PAINT: Primed and painted with two part acrylic urethane in traditional ROGERS black
  • LIGHTS: ICC Lights and reflectors with recessed lights in rear corners
  • Additional Standard Features: Flat bar steps and walk rod each side; deflectors between side posts; rear rubber mudflaps, inside step, and safety supports
  • Auxiliary Air Axles
  • Material Handler Mounting Kits
  • Removable Drop-Down Sides
  • Non-Removable Sides
  • Lintle Racks
  • Increased Material Thickness
  • Special Lighting & Paint Options
  • ICC Bumper
  • Ratchet Binders
