R-SERIES

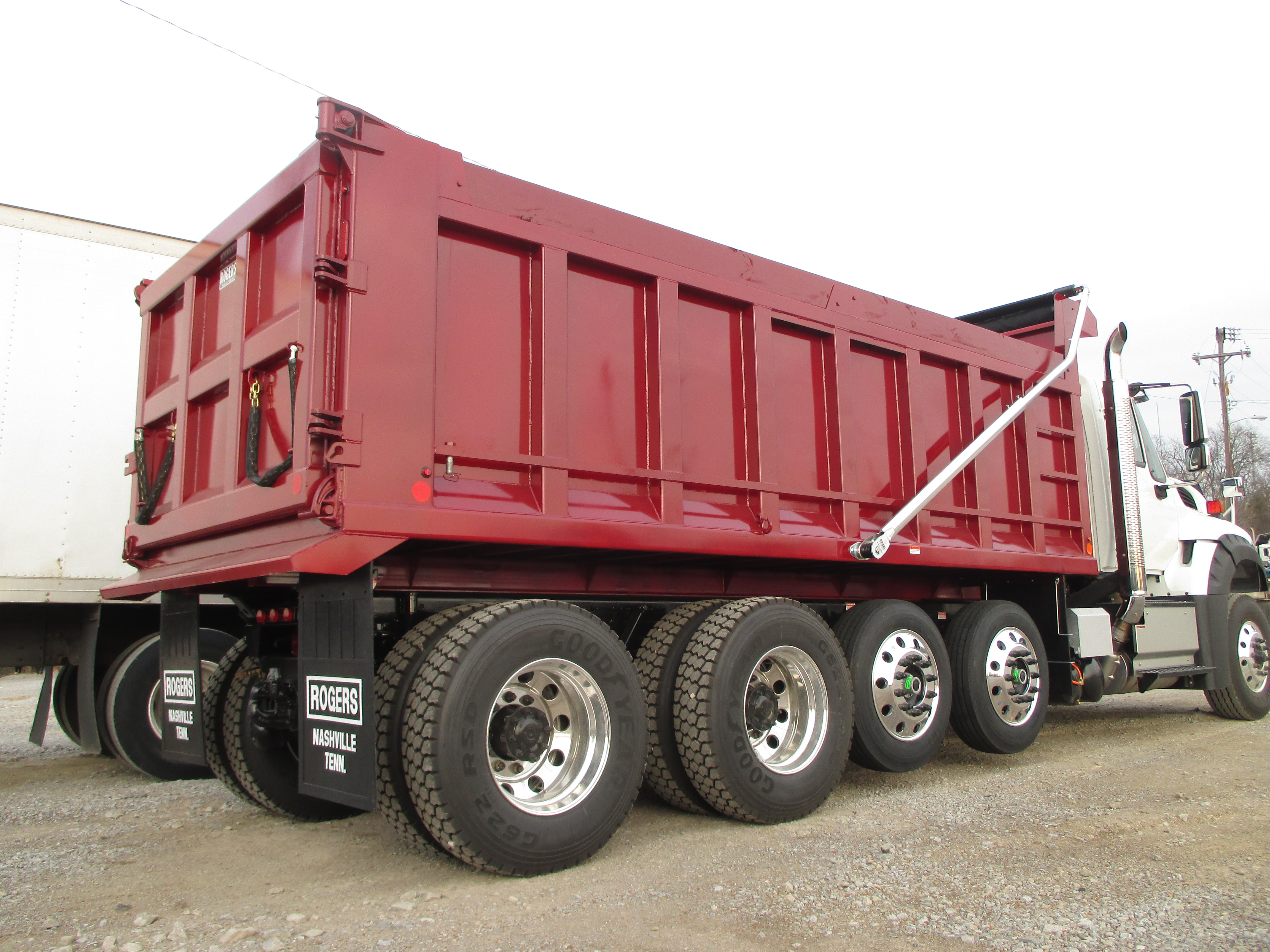

ROGERS’ reputation for durability was built by the traditional R Series body – it is the workhorse in our family. Dating back to when a dump bed was a just steel box, this design was, and still is, an undisputed best in class. These bodies have passed the test of time and are ideal for standard materials such as sand, dirt, gravel, etc. After 70 years of practice and experience, trust ROGERS to outfit your truck with the best body for your work truck application.

The ROGERS R Series comes in standard dimensions of 8’ wide and in lengths of 10 to 20 feet. Standard side heights vary pending body length – see chart below for details. Standard construction materials consist of 7-gauge steel for floor-section and hoist well; 10-gauge for sides, front and tailgate. All steel is graded to be high tensile steel with minimum yield strength of 50,000 lbs. The body rests on a frame constructed of 6” longitudinal tubing and 4” channel cross members, or chassis subframe constructed of 8” channel. Tailgate bracing and side rub rails are sloped for material shedding. . Inside chamfer strip extends the length of the body interior ensuring clean unloading. Additional features include full body length walk rod, electric tarp, air-actuated tailgate latch and customer preference of in-cab controls (air or cable).

“ROGERS – Another Word for Quality” has been our slogan as a trusted dump body manufacturer since 1946. Coast to coast, each ROGERS body is custom designed to match our customer’s specific use. Collaborate with our sales team to design and build the exact body that best suits your truck’s needs.

See the R-Series Brochure

See Features

Length (ft.) 10s 11s 12s 12 13 14 15 16 17 18
Model Number 100R 110R 120R 120R 130R 140R 150R 160R 170R 180R
Truck CA/CT* (in.) 84 92 102 84-96 96-102 102-120 120-132 120-144 144-156 156-166
Side Height (in.) 30 30 30 40 40 40 40 40 40 40
Tailgate Height (in.) 36 36 36 46 46 46 46 46 46 46
Cubic Capacity (cu yds) 6.6 7.3 7.9 10.6 11.5 12.4 13.3 14.2 15.1 16.9
Approximate Weight (lbs) 3500 3650 3900 4300 4550 4850 5150 5450 5750 6050
  • CYLINDER: Front Telescopic
  • SUBRAME: Constructed from 8” structural channel, full chassis length
  • FLOOR FRAME (if no SUBFRAME): 2” x 6” x 3/16” A572-GR tubing longitudinals with 4” channel cross members

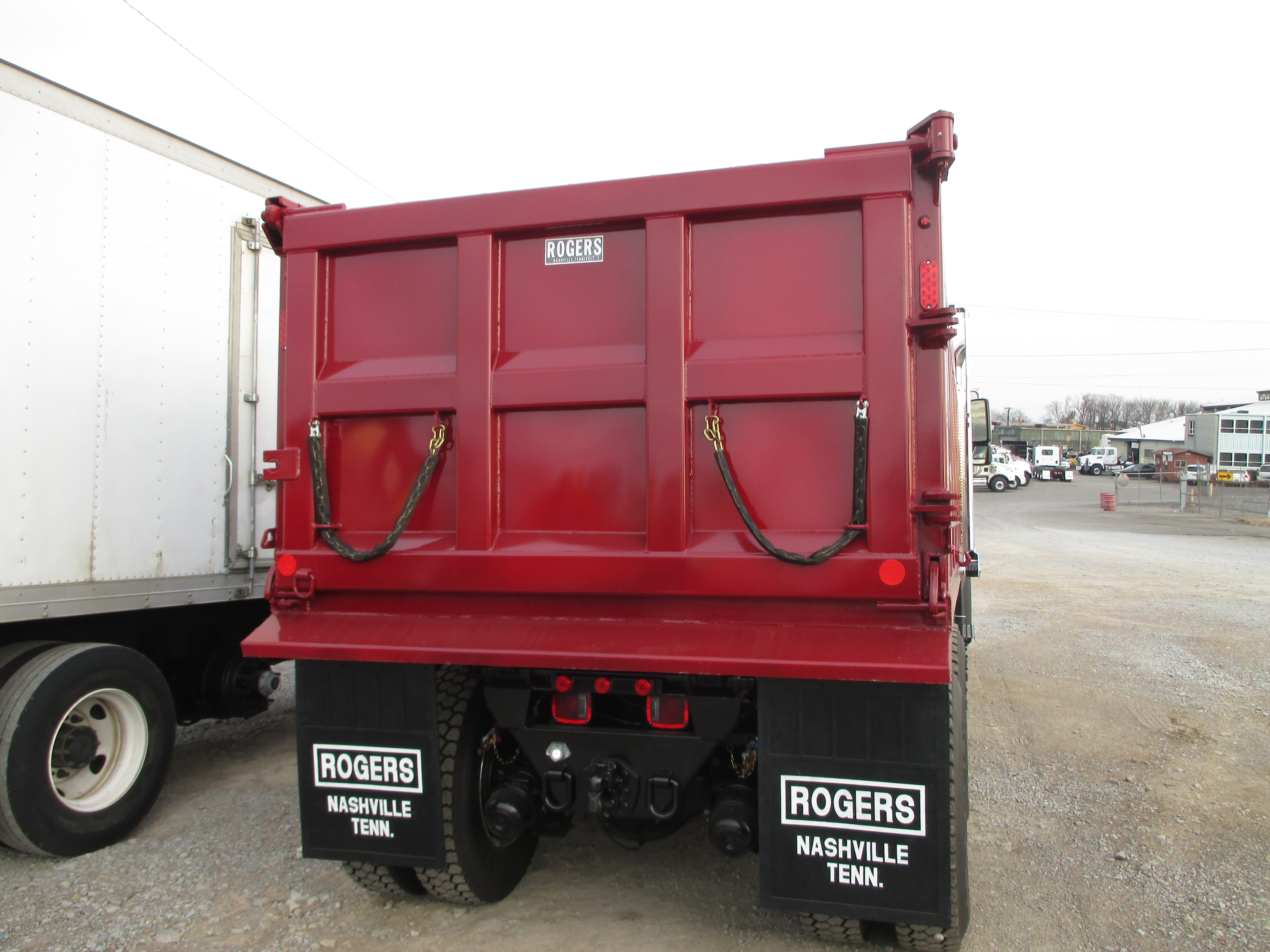

  • TAILGATE: Double acting; 6 or 9 panel design pending height; spreader chains
  • TAILGATE LATCH: Air actuated; forged tailgate latch for maximum performance
  • SIDE TOP RAIL: 3 ½” x 3 ½” 3/16” square tubing; front and rear board pockets
  • CABSHIELD: 20” length with multiple width options to accommodate truck exhaust stacks
  • PAINT: Primed and painted with two part acrylic urethane in traditional ROGERS black
  • LIGHTS: Standard light package consists of LED marker lights and rear post stop/turn LED lights conforming to FMVSS #108
  • Additional Standard Features: Flat bar steps and walk rod each side; deflectors between side posts; rear & front rubber mudflaps, inside step safety supports
  • Asphalt Lip/Push Bumper
  • Increased Material Thickness
  • Auxiliary Air Axles
  • Dirt-Shedding Angle on Side/Tailgate
  • Side Insulation
  • Various Cabshield Lengths
  • Custom Side & Tailgate Heights
  • Wood/Metal Sideboards
  • Sloping Tailgate
  • Coal Chutes
  • 2-Way Barn Door Tailgate
  • Watertight Tailgate
  • Pintle Hitches – 15 to 50 Ton
  • Diamond Tread Aluminum Paneling
  • Special Lighting & Paint Options
  • Spreader Gate
  • Rear Tailgate Spreader
  • Snow Plow
