M-SERIES

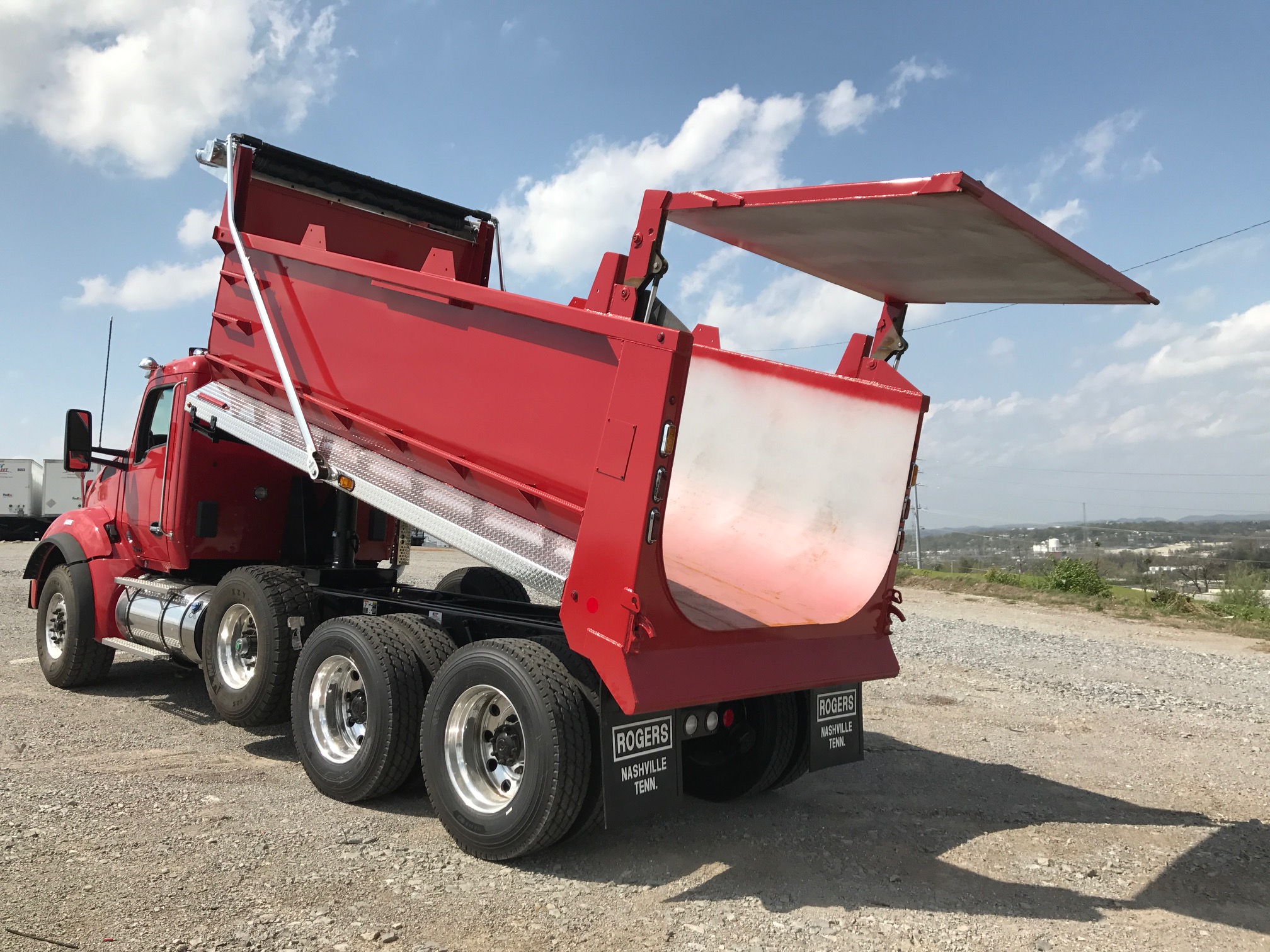

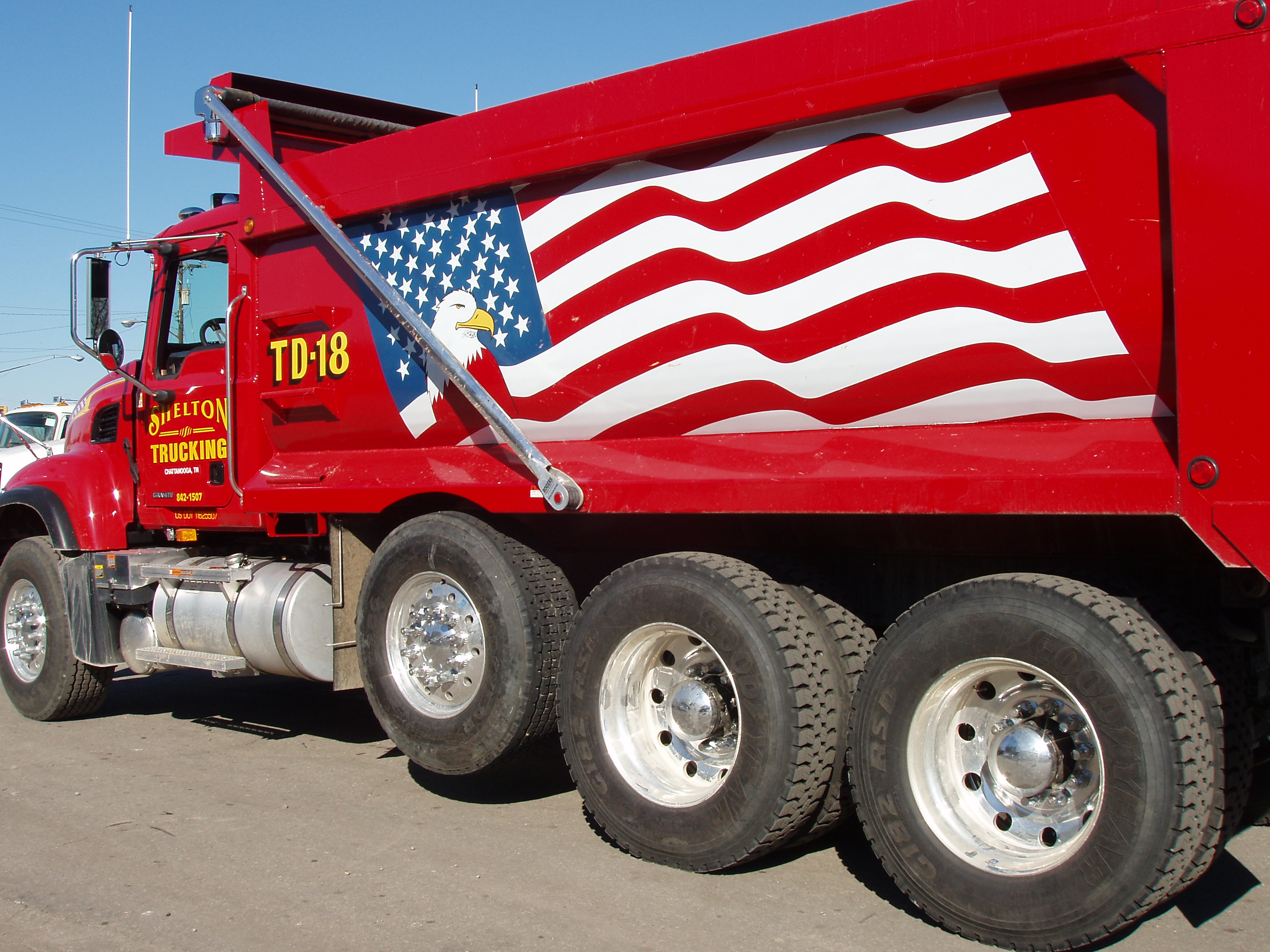

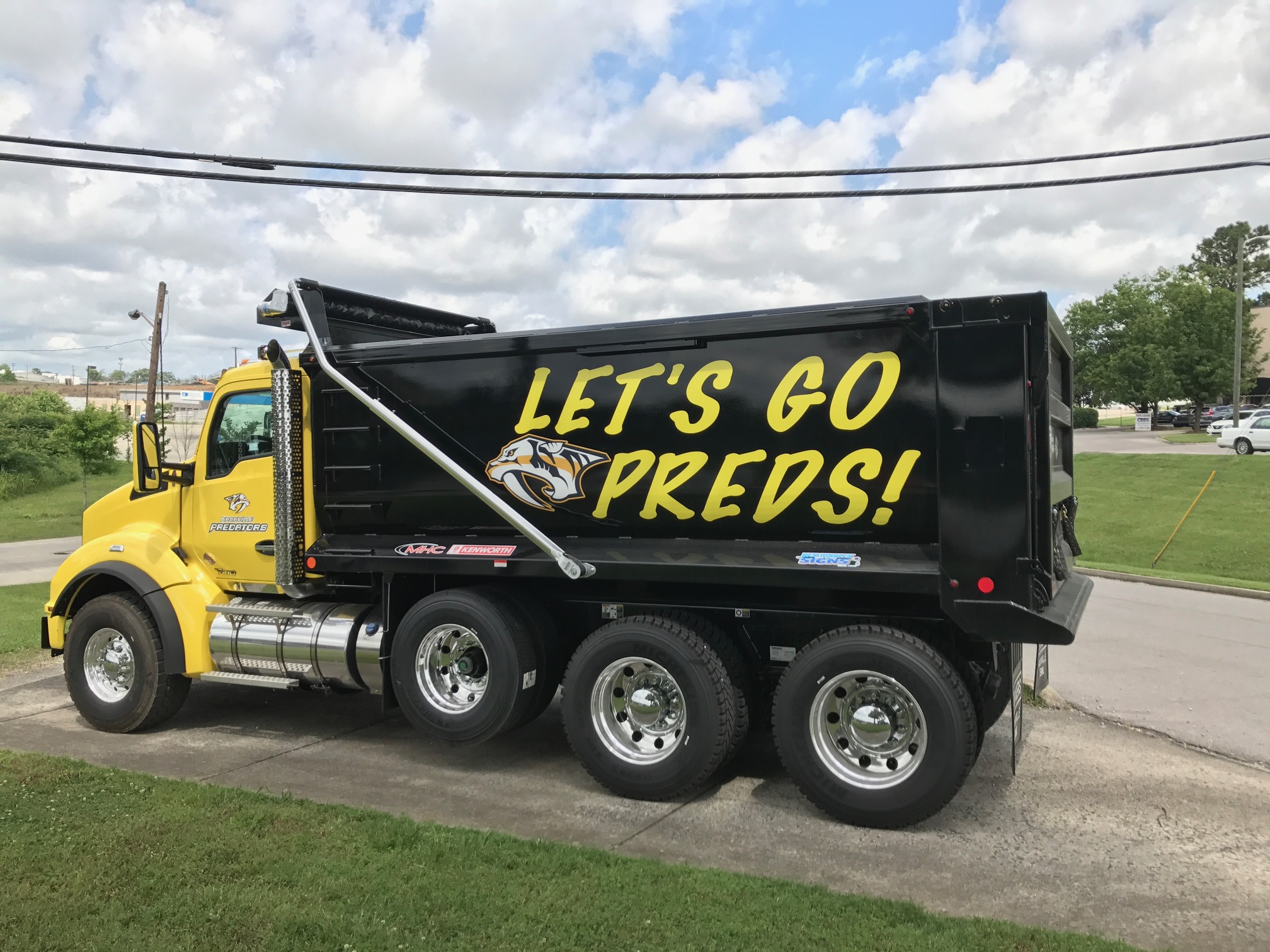

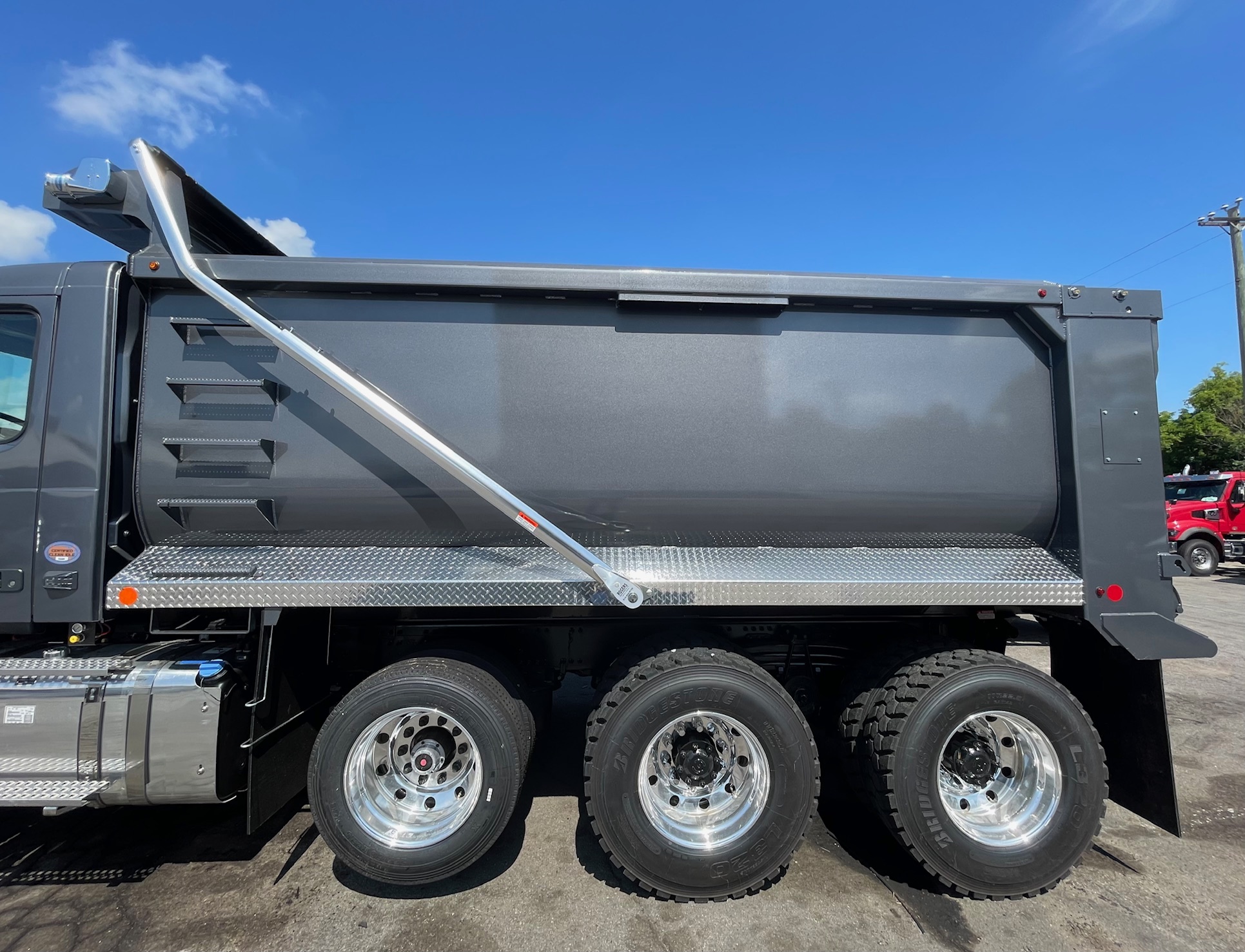

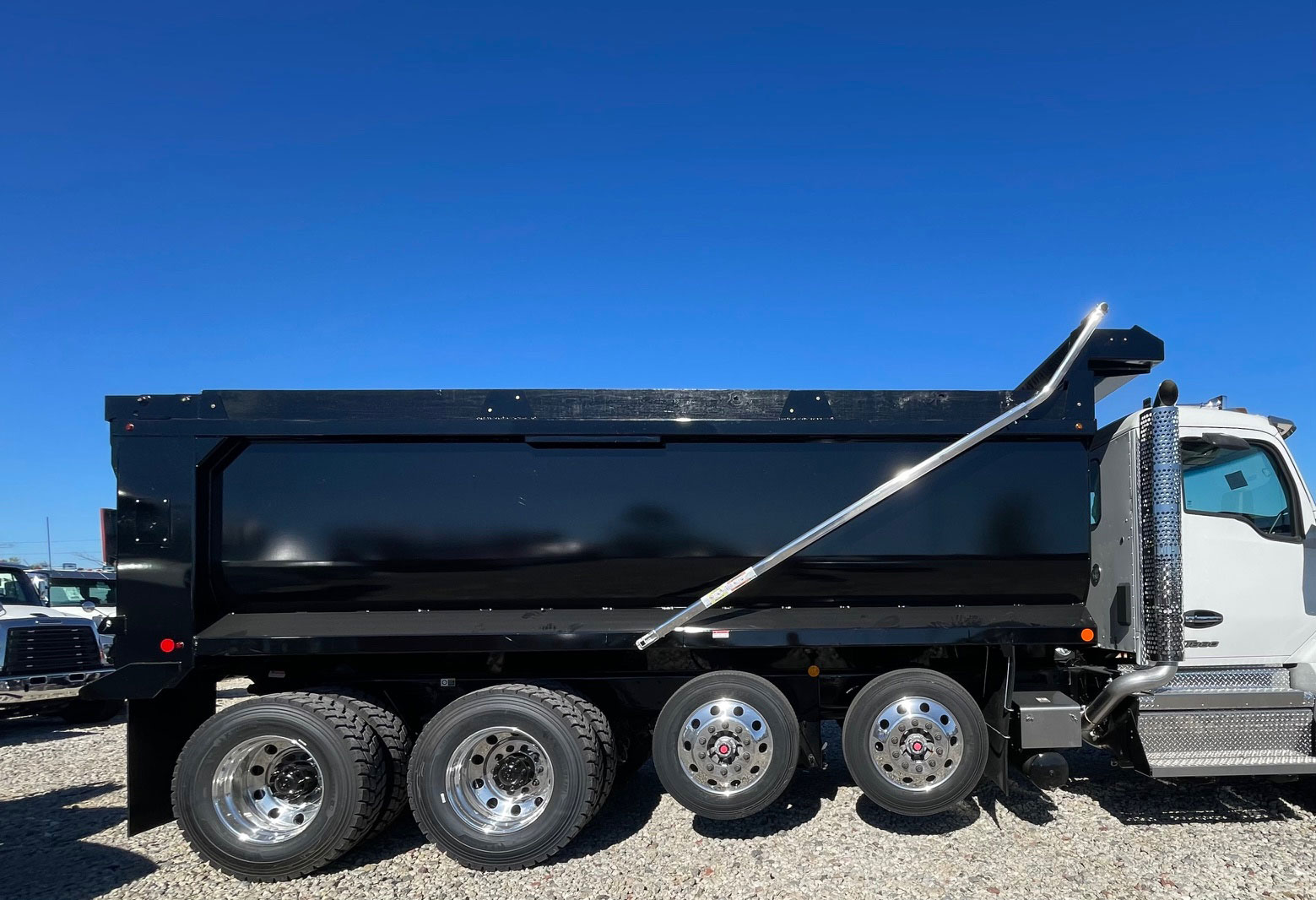

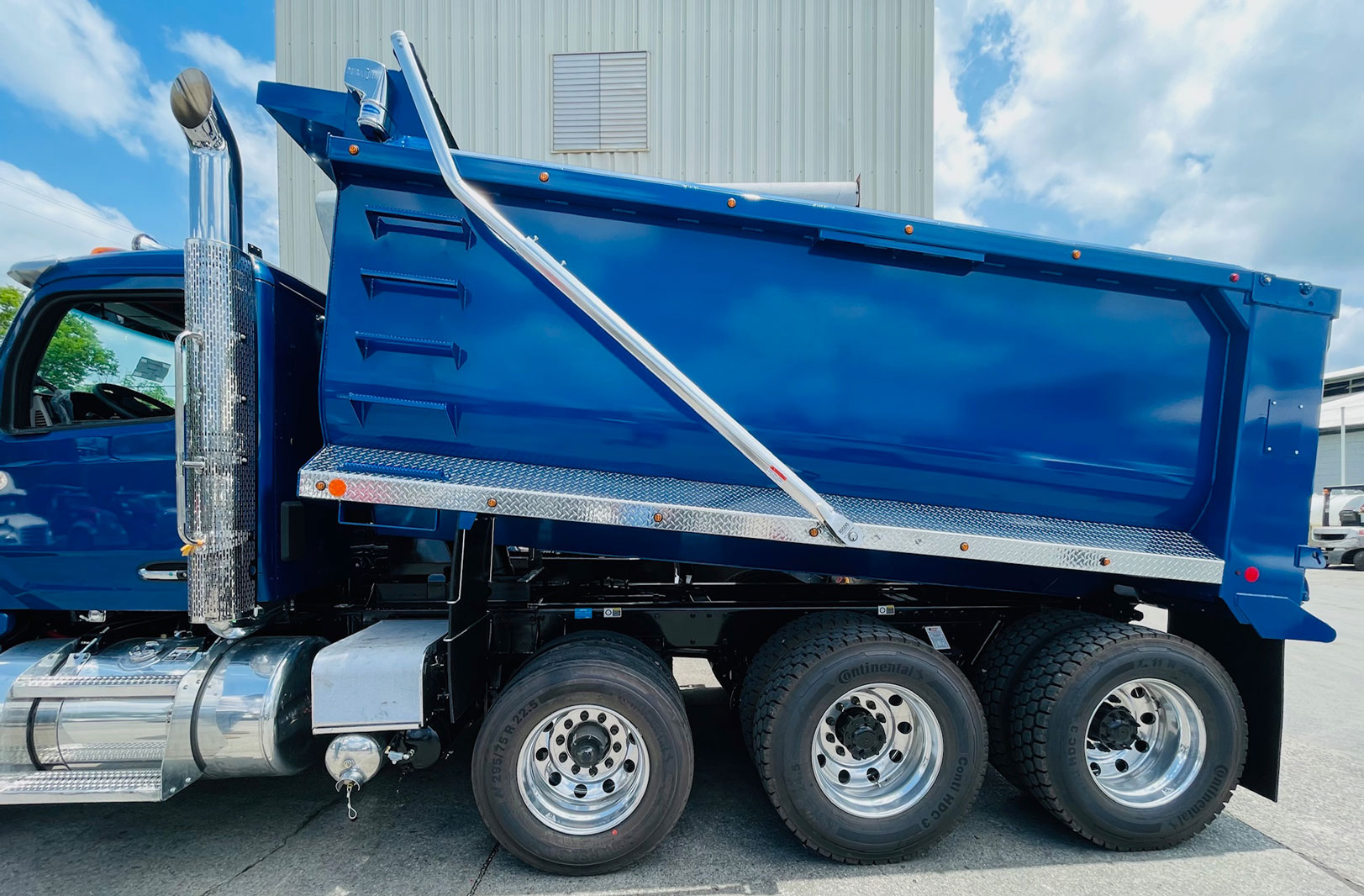

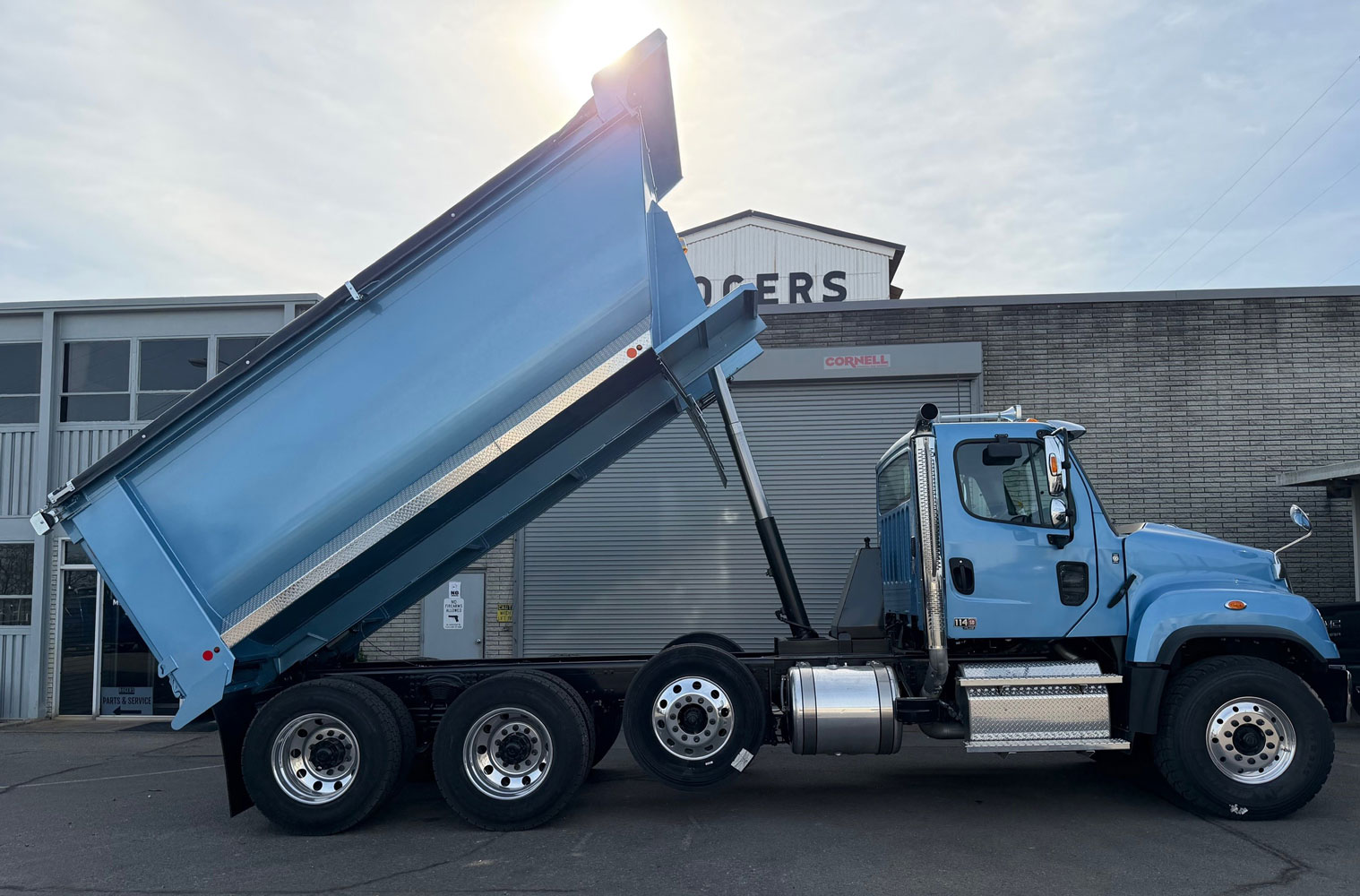

The ROGERS M Series (aka “Millennium”) is a versatile dump body, well-suited for standard jobs as well as hauling the rough stuff. The center floor section has been upgraded to 3/8” AR450 steel resting on 8” longitudinal members. The top rails are 4” square tubing. The remainder of the body is constructed of 1/4” AR450 steel. Standard dimensions for the M Series include 16’ body length with side heights between 36” to 66” inch side height. Additional features include ROGERS trademark hydraulic hi-lift tailgate, electric tarp, and 8-inch push bumper, air-actuated tailgate latch and customer preference of in-cab controls (air or cable).

“ROGERS – Another Word for Quality” has been our slogan as a trusted body manufacturer since 1946. Coast to coast, each ROGERS body is custom designed to match our customer’s specific use. Collaborate with our sales team to design and build the exact body that best suits your truck’s needs.

See the Millennium Brochure

See Features

Length (ft.) 16 17 18 19 20
Model Number 160M 170M 180M 190M 200M
Truck CA/CT* (in.) 133-138 132-156 156-166 166-176 call
Side Height (in.) 56 56 56 56 56
Tailgate Height (in.) 62 62 62 62 62
Cubic Capacity (cu yds) 21.0 22.3 23.7 25.0 26.4

* – Cubic capacity shows the increase with 6″ board

  • CYLINDER: Front Telescopic
  • PUSH BUMPER: Constructed of 3” schedule 80 pipe with 3/8” plate
  • TAILGATE: 3-section with two horizontal angled braces to shed material.  Forged tailgate latch for maximum performance
  • SIDETOP RAIL MATERIAL: 4” x 4” x 3/16’ tubing with board pockets
  • FRAME: 2” x 8” x 3/16” A572-GR tubing longitudinals with full depth front cross-members
  • HOISTWELL MATERIAL: 1/4” AR450
  • PAINT: Primed and painted with two part acrylic urethane in traditional ROGERS black
  • LIGHTS: Standard light package consists of LED marker lights and rear post stop/turn LED lights conforming to FMVSS #108
  • Additional Standard Features: 20” cabshield, rear & front rubber mudflaps, inside step safety supports
  • Non-standard options available are:
  • Auxiliary Air Axles
  • Dirt-Shedding Angle on Side/Tailgate
  • Various Cabshield Sizing
  • Custom Side & Tailgate Heights
  • Wood/Metal Sideboards
  • Sloping Tailgate
  • Coal Chutes
  • 2-Way Barn Door Tailgate
  • Watertight Tailgate
  • Pintle Hitches – 15 to 50 Ton
  • Diamond Tread Aluminum Paneling
  • Special Lighting & Paint Options
  • Spreader Gate
  • Rear Tailgate Spreader
  • Snow Plow
