L-SERIES

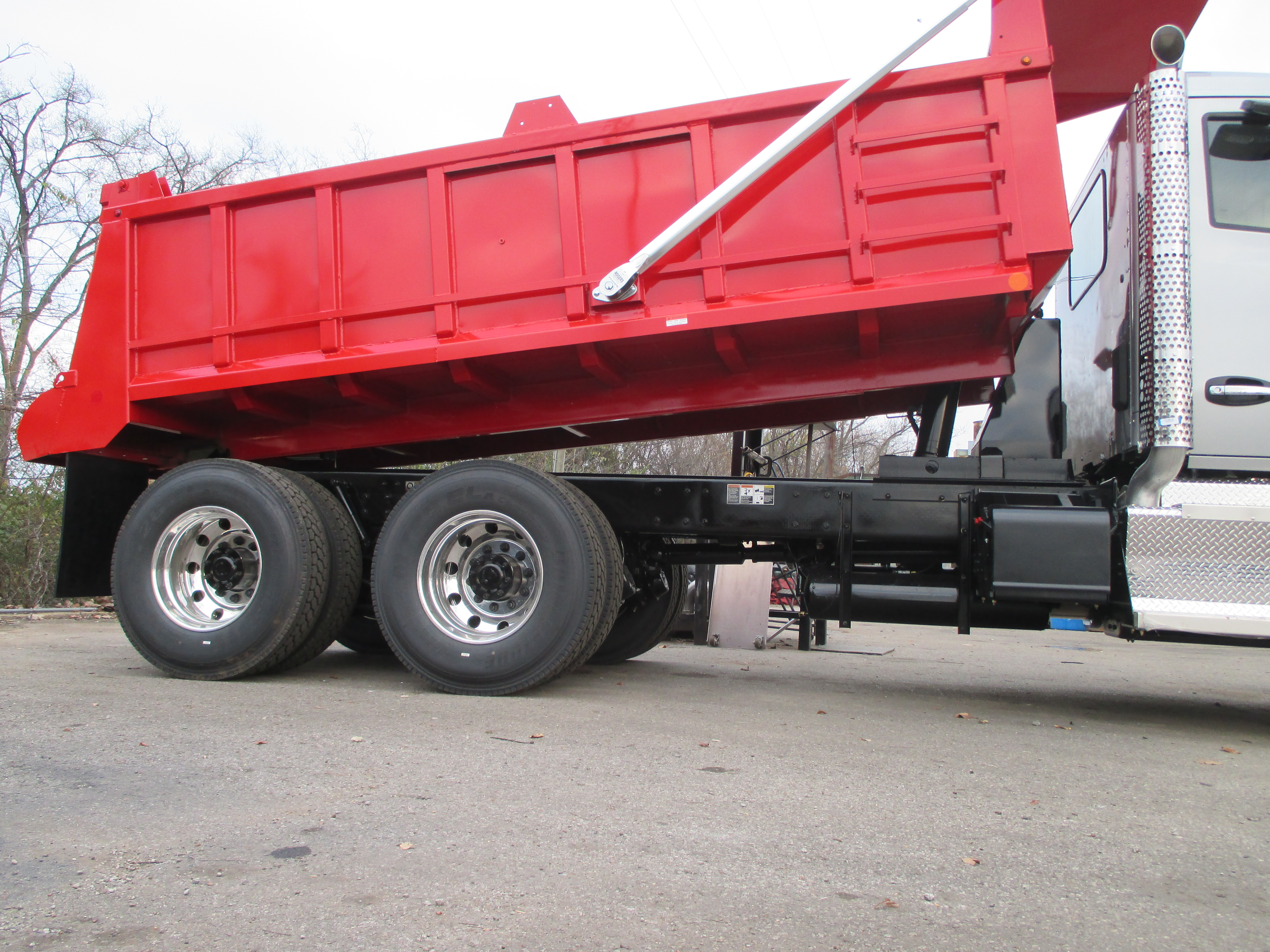

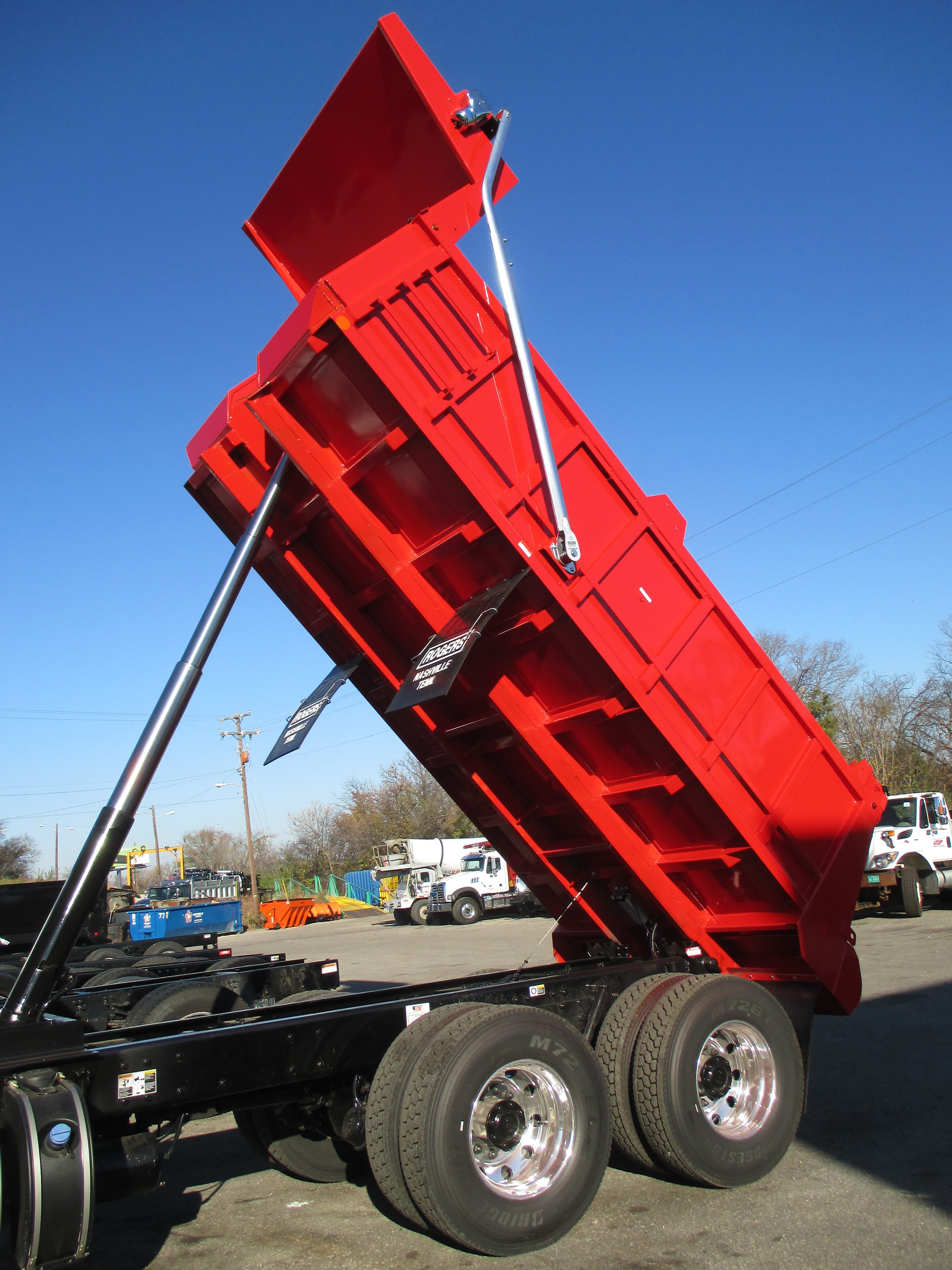

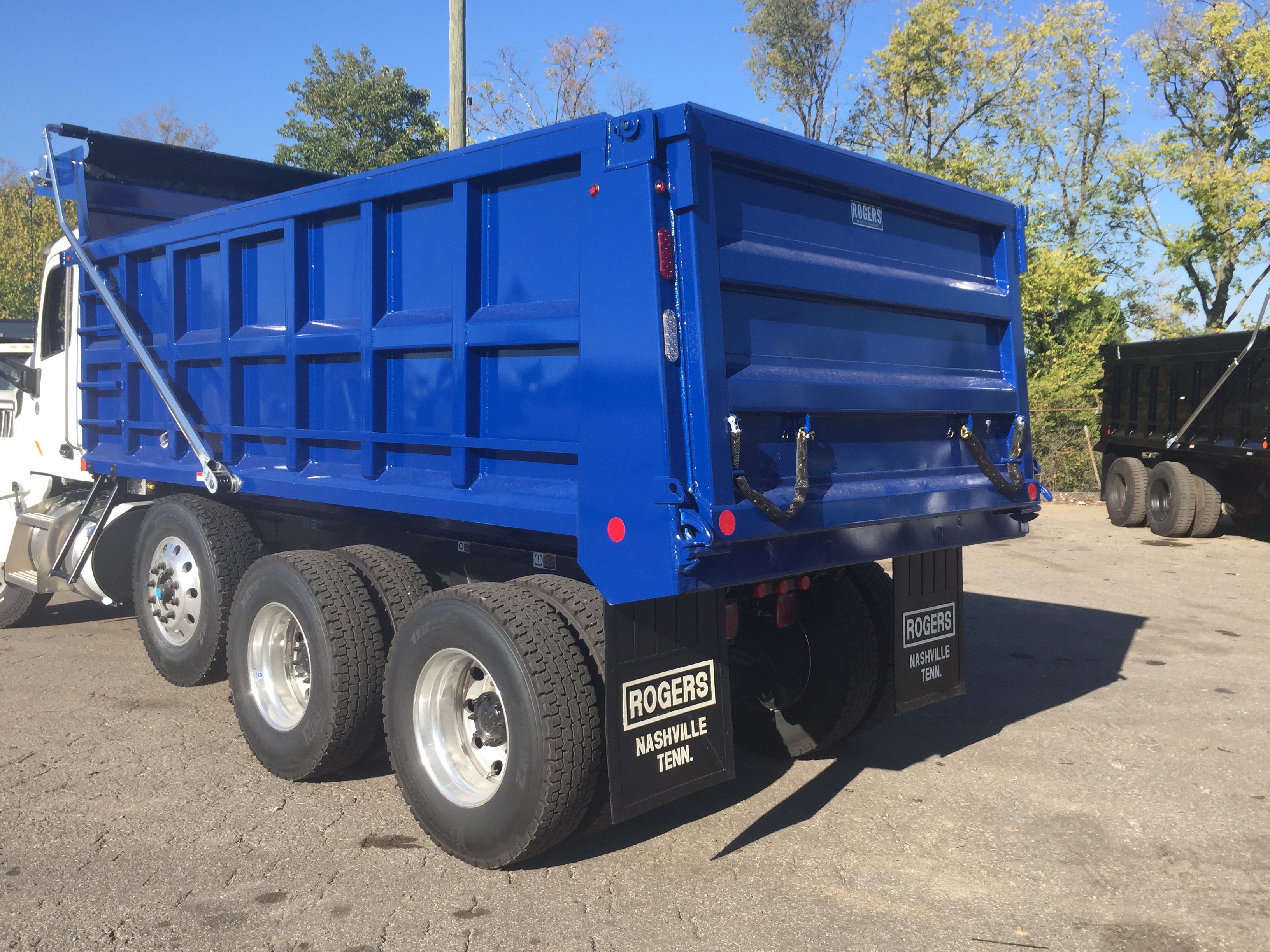

Our customers challenged us to provide a light weight alternative dump body for standard material hauling. The result is ROGERS L Series which has hits the mark. This body utilizes high-tensile steel throughout, with standard 12-gauge sides, front and tailgate; and a 7-gauge floor. Side-posts and cross-members are rolled hat-section shapes, forming continuous ribs around the sides and floor, completing the unitized body construction. The body hinges directly to chassis frame which provides a reduction in weight and lowers the center of gravity. The L-style body is designed to deliver maximum payload with minimum weight.

“ROGERS – Another Word for Quality” has been our slogan as a trusted dump body manufacturer since 1946. Coast to coast, each ROGERS body is custom designed to match our customer’s specific use. Collaborate with our sales team to design and build the exact body that best suits your truck’s needs.

See the L-Series Brochure

See Features

Length (ft.) 15 16 17 18 19
Model Number 150L 160L 170L 180L 190L
Truck CA/CT* (in.) 120-132 130-144 144-156 156-166 162-176
Side Height (in.) 40 40 40 40 48
Tailgate Height (in.) 46 46 46 46 46
Cubic Capacity (cu yds) 15 16 17 18 19
Approximate Weight (lbs) 4430 4600 4770 4940 5110
  • CYLINDER: Front Telescopic
  • FLOOR FRAME: 6” x 2” x 3/16” A572-GR tubing longitudinals with 4” hat-section ribs spanning top rail to floor
  • TAILGATE: Double acting; three section with sloped horizontal brace dividers; spreader chains
  • TAILGATE LATCH: Air actuated; forged tailgate latch for maximum performance
  • SIDE TOP RAIL: 3 ½” x 3 ½” 3/16” square tubing; front and rear board pockets
  • CABSHIELD: 20” length with multiple width options to accommodate truck exhaust stacks
  • PAINT: Primed and painted with two part acrylic urethane in traditional ROGERS black
  • LIGHTS: Standard light package consists of LED marker lights and rear post stop/turn LED lights conforming to FMVSS #108
  • Additional Standard Features: Flat bar steps and walk rod each side; deflectors between side posts; rear rubber mudflaps, inside step, and safety supports
  • Auxiliary Air Axles
  • Hi-Lift Tailgate
  • Specialty In-Cab Controls
  • Wood/Metal Sideboards
  • 2-Way Barn Door Tailgate
  • Watertight Tailgate
  • Pintle Hitches (15-50 Ton)
  • Special Lighting & Paint Options
  • Coal chute in tailgate
  • Snow & Ice Setups for Plows/Spreaders
  • Custom Side & Tailgate Heights
  • Bushings & Grease Fittings in Top Tailgate Hardware
  • Asphalt Lip/Push Bumper
  • Increased Material Thickness
  • Dirt-Shedding Angle on Side/Tailgate
  • Side Insulation
  • Various Cabshield Lengths
  • Sloping Tailgate
  • Pintle Hitches – 15 to 50 Ton
  • Diamond Tread Aluminum Paneling
  • Spreader Gate
